Products Description

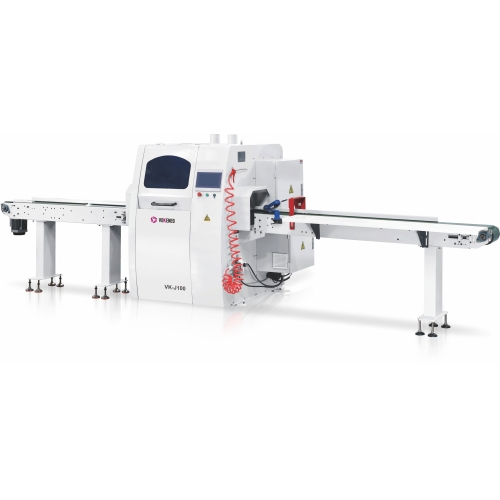

| models | VK-J100 |
| Saw blade diamete | Ф500mm |
| Min. Cutting size | 12×30mm |
| Max. Cutting thickness | 80mm |
| Max. Cutting size | 250×50mm 200×80mm |
| Min. Cutting length | 125mm |
| Min. ingoing length | 400mm |
| Max. ingoing length | 6.3m |
| Max. feeding speed | 200m/min |
| Saw shaft speed | 3800rpm |
| Saw shaft motor power | 7.5KW |
| Servo feeding motor | 4.5kw |
| Total power | 18.36kw |
| Saw spindle motion frequency | 2-4次/秒（times/sec） |
| Qty of pressure rollers | 6 |
| Qty of down feeding rollers | 6 |
| Dust exit diameter | Φ120mm×2 |
| compressed air pressure | 6-8Bar |
| Air consumption | 1000l/min |
| Feeding convryor | 200mm |
| Qty of pusher | / |
| Saw blade clamp plate size | Φ158mm |
| Scanning wheel size | / |
| Overall size | 5350*1350*1900mm |
| Net weight | 1600kg |
