Products Description

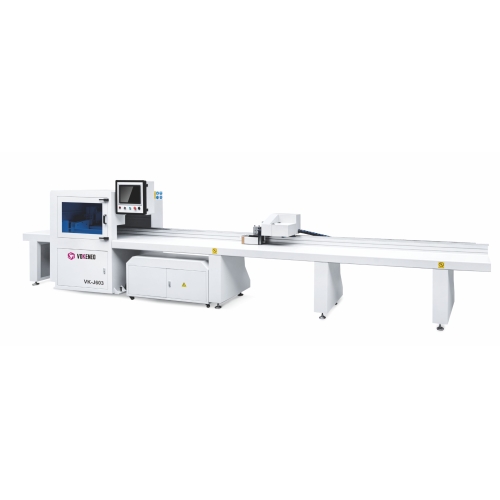

| Specifications＆models | VK-J603 |
| Cutting length | 常规4M，可定做长度 |
| Cutting width | 10-250mm |
| Working thickness | 10-90mm |
| Minimum sawing area | 30*10mm |
| Maximum sawing area | 230*40mm |
| Blade Diameter | Φ455mm |
| Saw shaft speed | 3600rpm |
| Servo motor power | 0.75kw |
| Main saw motor power | 7.5KW |
| Feed speed | 60m/min |
| air pressure | 5-6KGS/CM |
| Voltage | 380V |
| Diameter of suction port | 1个Φ100mm |
| Net weight | 1000kg |
| Overall Size | 6770*950*1750mm |
